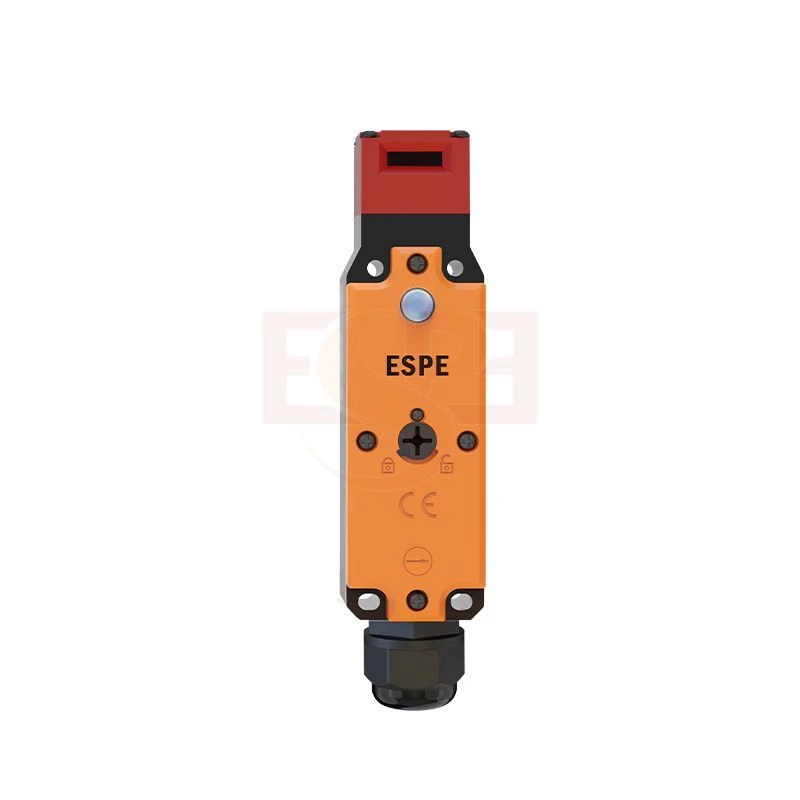

SLM11-CPM3 Safety Door Switch 2 contacts, 1NC+1NC
63 Items sold in last 12 months
2 People watching this product now!
Product Feature:
- IP 67 protection degree (SLM11, SLM13 and SLM21 series safety door switches);
- Multiple models for selection;
- Easy for installment and operation;
- Holding force up to 1300N;
- Widely use in varies industrial environment.
Specifications:
- Magnetic voltage/indicator: Electromagnetic DC24V Green LED
- Locking mode: Power to unlock

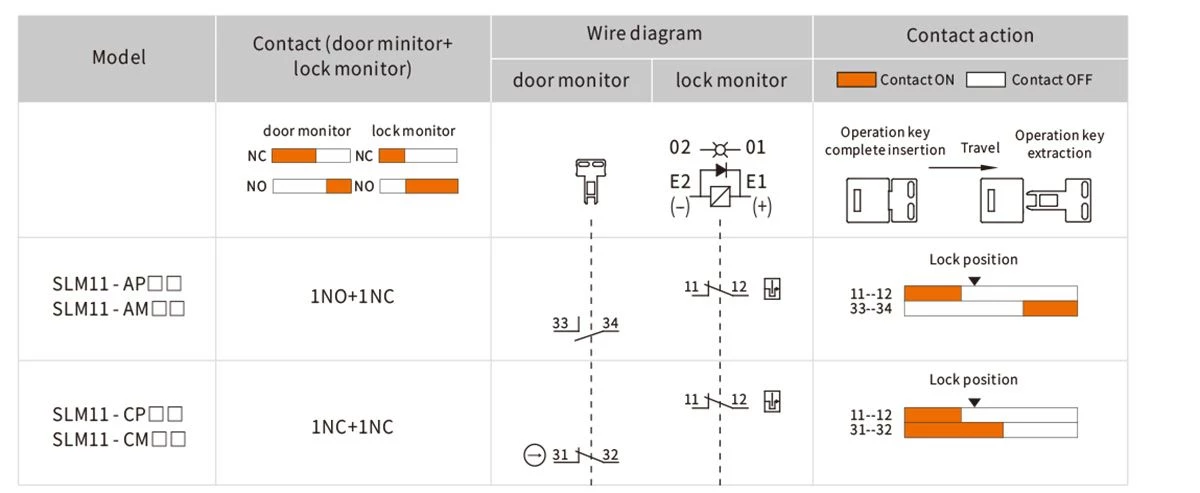

- Contact type: 1NC+1NC
- Connector size: M16
| Electromagnetic tube | |
| Rated Voltage | DC24V |
| Capacity | 4.8W |
| Rated current | Approximate 200mA |
| Insulation | Clas N (130°C） |
| LED indicator | LED indicator |
| Rated voltage | DC24V |
| Rated current | Approximate 1mA |
| Luminous color (LED) | Green |
| Safety level | Safety level |
| Certificate | CE TUV |
| Standard | EN60947-5-1, GB14048.5, IEC61508, EN ISO 14119 |
| Protection rate | IP67 |
| Material | PA66 fire retardant |
| Mechanical lifespan | >1 million |
| Electrical lifespan | Over 150, 000 times (AC240V3A, resistive load) |
| Using Type | AC-15 |
| Rated operating voltage(Ue) | 240V |
| Rated operating current(Ie) | 3A |
| Electrical parameter | |
| Contact resistance | <24mΩ |
| Nominal discharge current (lth) | 10A |
| Rated insulation voltage (Ui) | 300V |
| Anti-electric shock level | Class II (double insulation) |
| Pulse withstand voltage (EN60947-5-1) | 2.5kv |
| Insulation resistance | >100mΩ |
| Short-circuit protection | 10A, 250V requires a quick-break fuse |
| Vibration resistance | 10-55HZ, double amplitude 1.5mm |
| Compact resistance | Durability 1000/S², mal-operation 300m/S² |
| Conditional short-circuit current | 100A (EN60947-5-1) |
| Space of contact | Above 2 x 2mm |
| Action characteristic | |
| Direct opening force | Minimum 60N |
| Direct opening travel | Over 10mm |
| Allowed operating speed | 0.1m-0.5m/s |
| Allowed operating frequency | Maximum 30 times/minute |
| Holding force | 1300N |
| Environment | |
| Operating environment | 3 (EN60947-5-1) |
| Operating temperature | -10°C to 55°C ( no freezing) |
| Operating humidity | <95% RH |

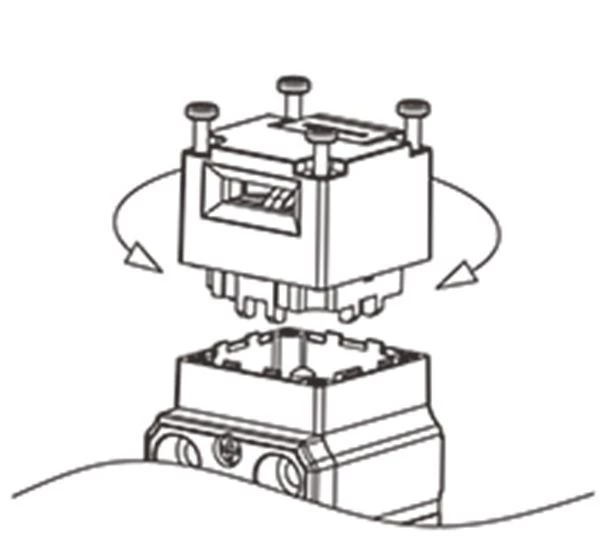

Loosen 4 screw on top of head, rotate the head to the right key inserting position and then install it.

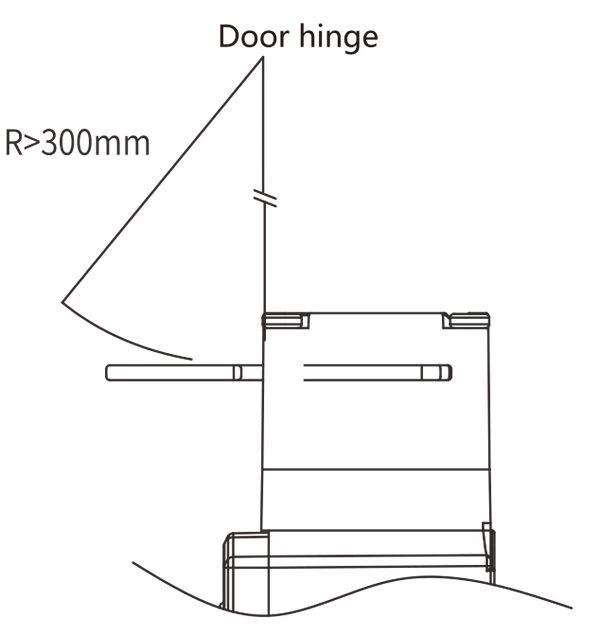

When install on slide hung door, it should be over than semidiameter.

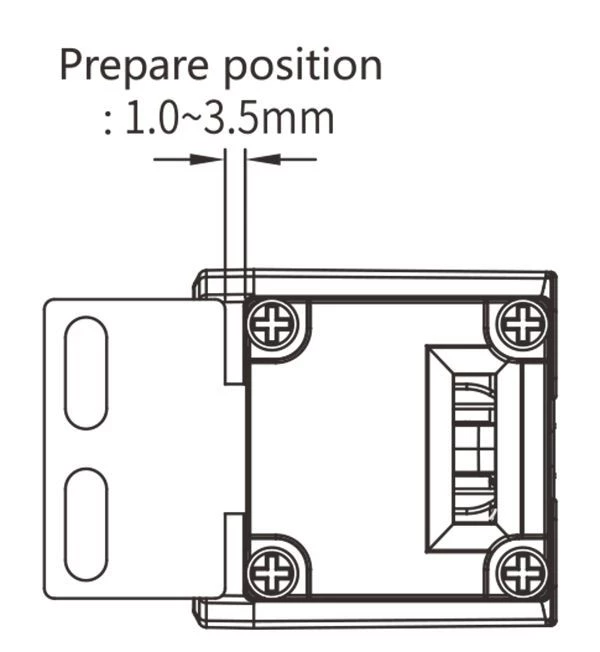

Please install the safety switch and insertion key under range 1-3.5mm.

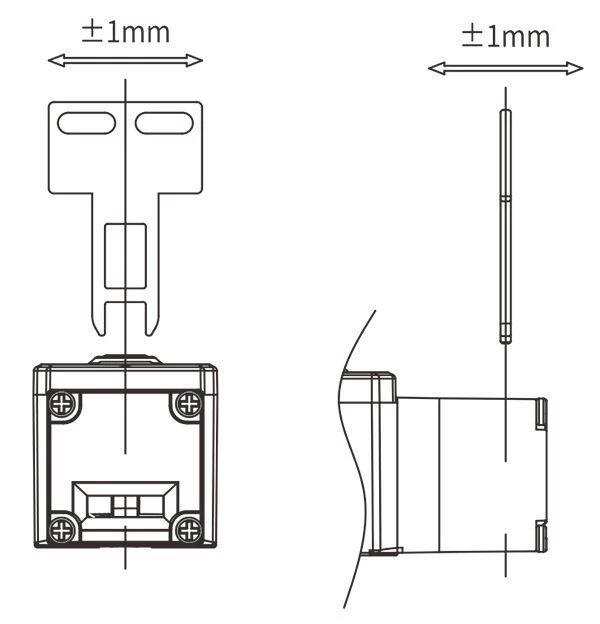

The installation of operation key allows ±1mm deviation within the key insertion center of the hole.
