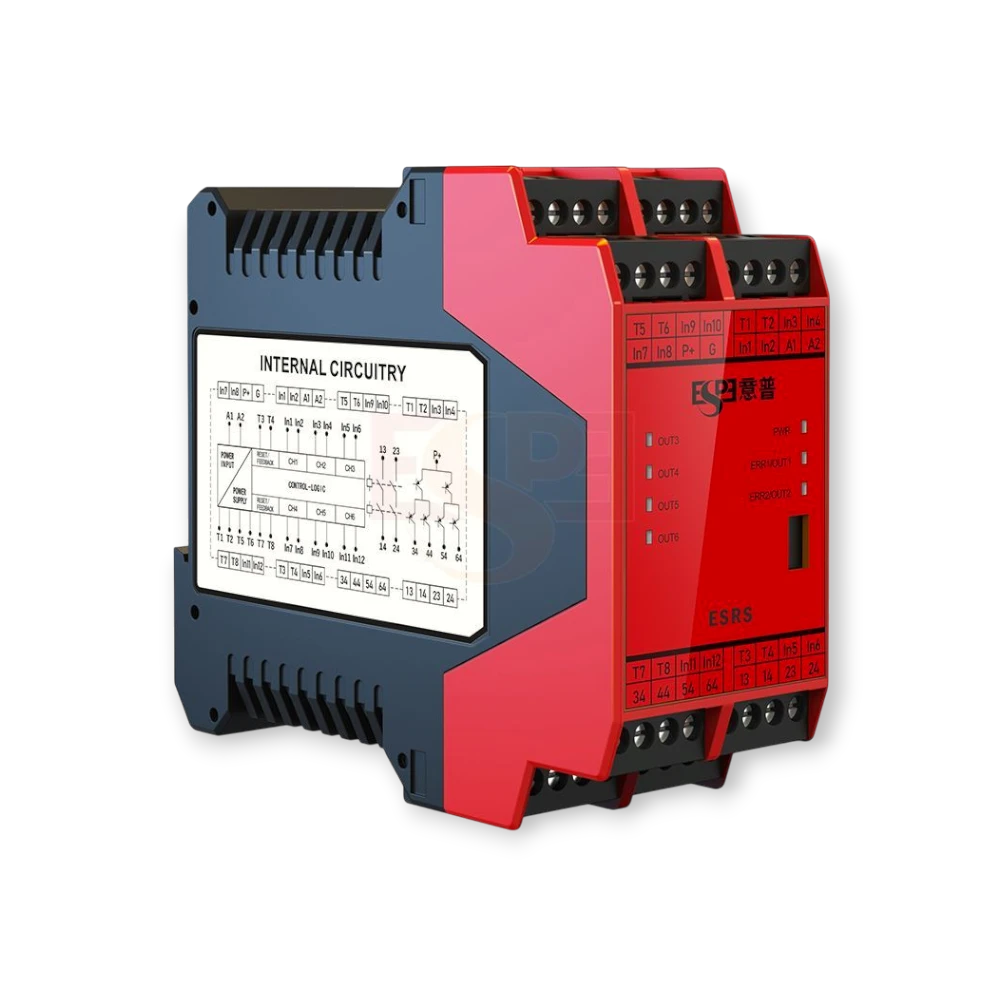

ESRS Safety Control Module, output 2NC 4 PNP
88 Items sold in last 12 months
6 People watching this product now!
Product feature:
- Designed in accordance with ISO13849-1 (Category 4, PLe).
- Relay output: 2 normally open contacts.
- Transistor output: 4 PNP signal output.
- Self-diagnose and redundant circuit design.
- Support a variety of safety input signals.
| Electrical data | |
| Power supply | 20V~30VDC |
| Electricity break | ≤110mA(24VDC) |
| Input feature | |
| Channel | 6 |
| Input current | ≤50mA(24VDC) |
| Wire resistance | ≤15Ω |
| Support device | Emergency stop, safetygate, safety light curtain, safeyt mat, two hand button, interlock switch, reset button |
| Output feature | |
| Contacts | |
| Material of contacts | AgSnO₂ |
| Fuse protection | 10A fast;6A slow |
| Switching capacity | 5A/250VAC;5A/24VDC |
| Semiconductor feature | |
| Output | 4PNP |
| Drive power | 2A(24VDC) |
| Time feature | |
| Operation time | ≤100ms |
| Release time | ≤30ms |
| Restore time | ≤100ms |
| Power break time | 20ms |
| Ambient feature | |
| Electro magnetic compatibility | EN60947,EN61000-6-2,EN61000-6-4 |
| Vibration | Frequency:10Hz~55Hz;Amplitude:0.35mm |
| Ambient temperature | -20℃~+60℃ |
| Storage temperature | -40℃~+85℃ |
| Relative Humidity | 10%~90% |
| Insulating feature | |
| Overvoltage level | Ⅲ |
| Pollution level | 2 |
| Rated insulating voltage | 250VAC |
| Rated impact voltage | 6000V(1.2/50us) |
| Dielectric strength | 1500VAC,1min |
| Clearance & creepage | EN60947-1 |
| Certificates | |
| Safety level | SIL3 |
| Safety level (SIL/PL) | Ple |
| Safety category | Cat.4 |

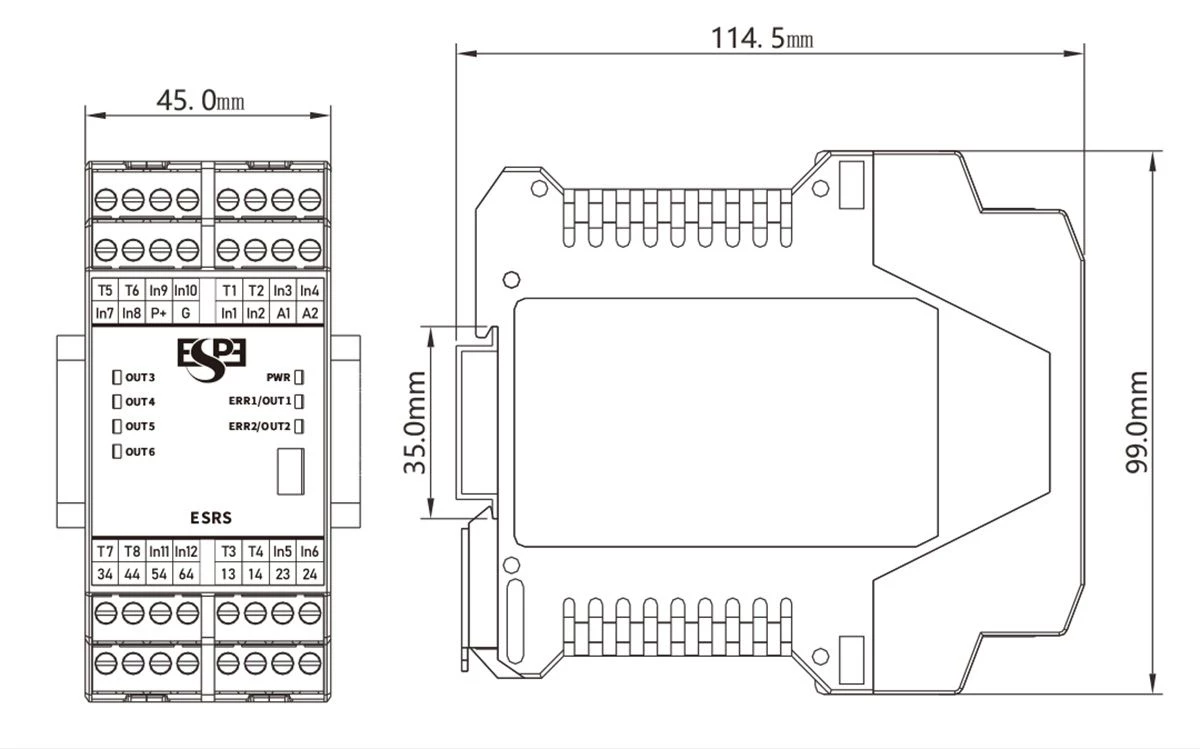

Product Size
Wiring diagram

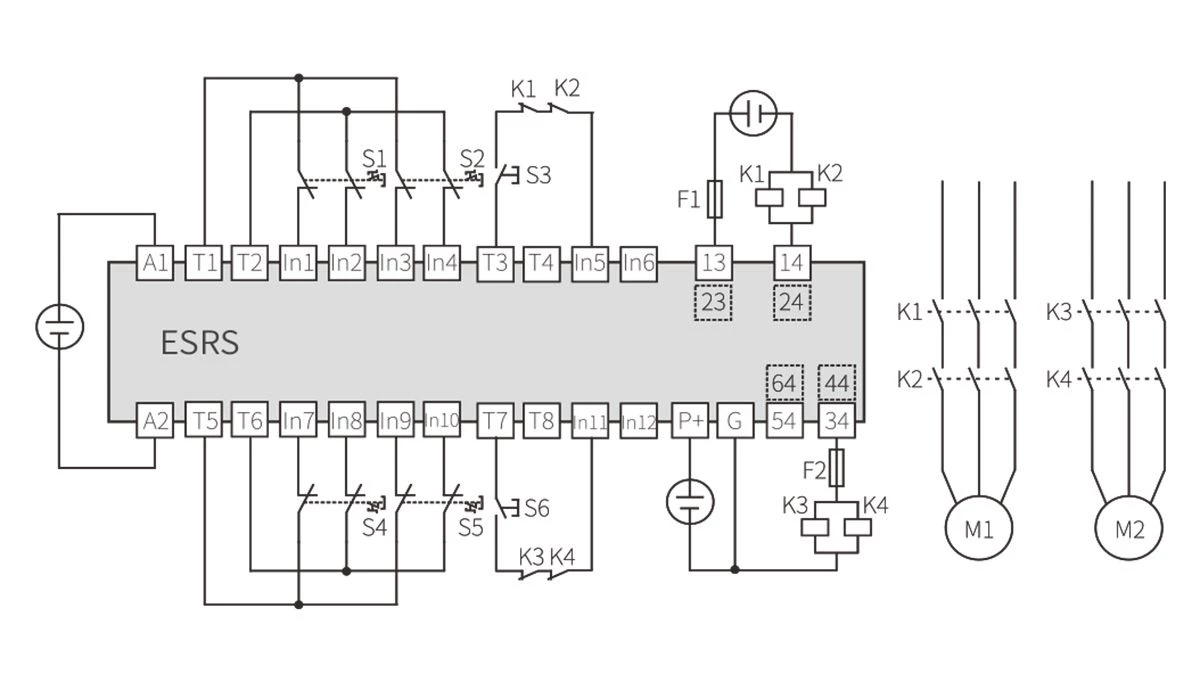

4 channel emergency button input

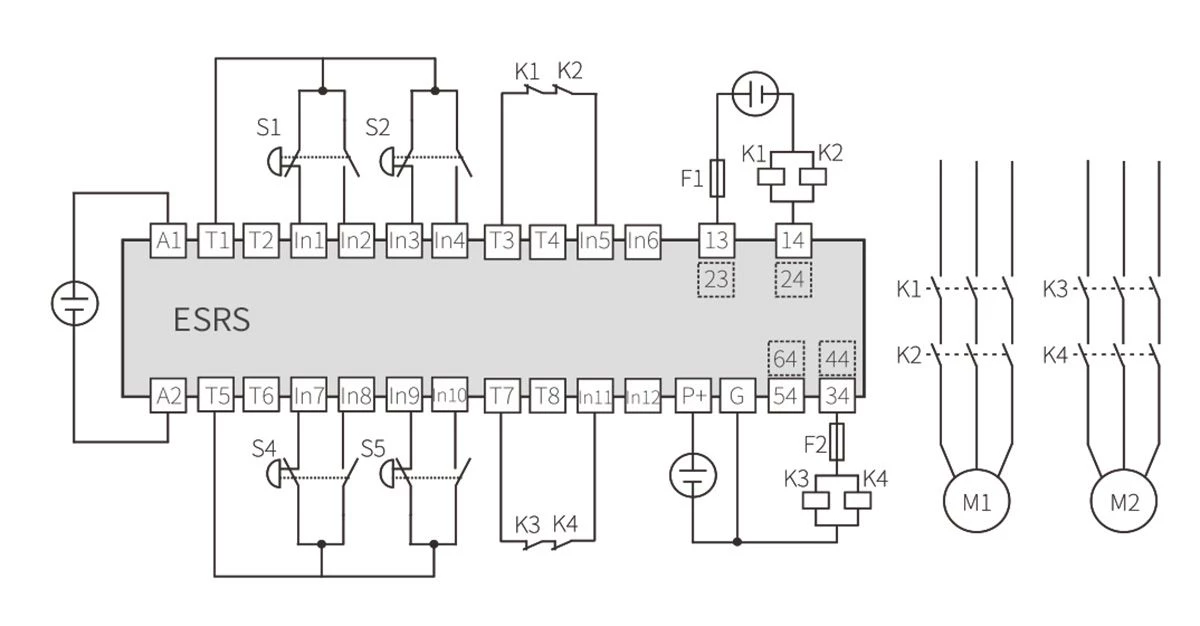

2 channel two-hand button input

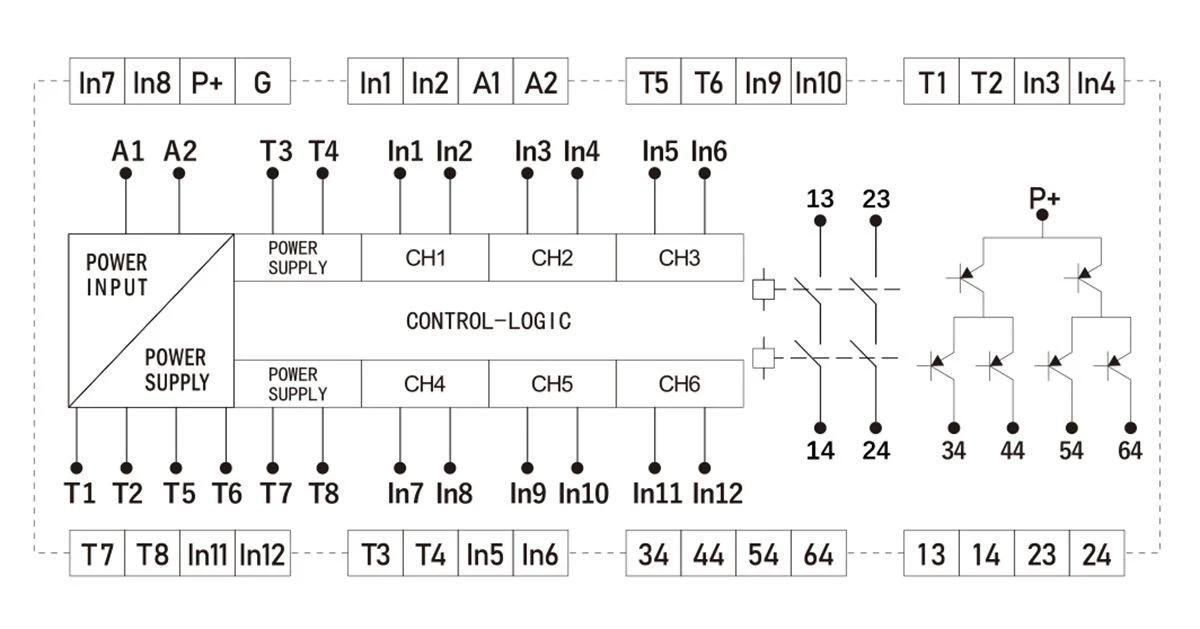

Panel function
