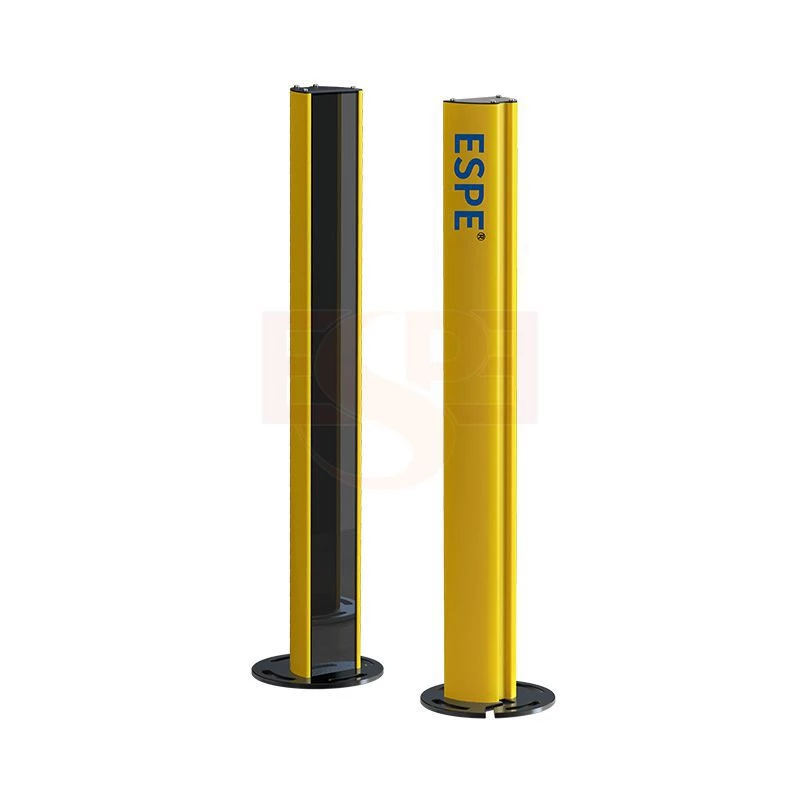

ESQC-N9610PC4-30 Multiple-side safety light curtain, resolution 20 mm, 96 beams, protective height 950 mm, output PNP
14 Items sold in last 12 months
3 People watching this product now!
- Series: ESQC-N9610
- Resolution (mm): 20
- Beams: 96
- Beam space (mm): 10
- Protective height (mm): 950
- Total height (mm): 1030
- Output: PNP
- Sensing method: Normally close

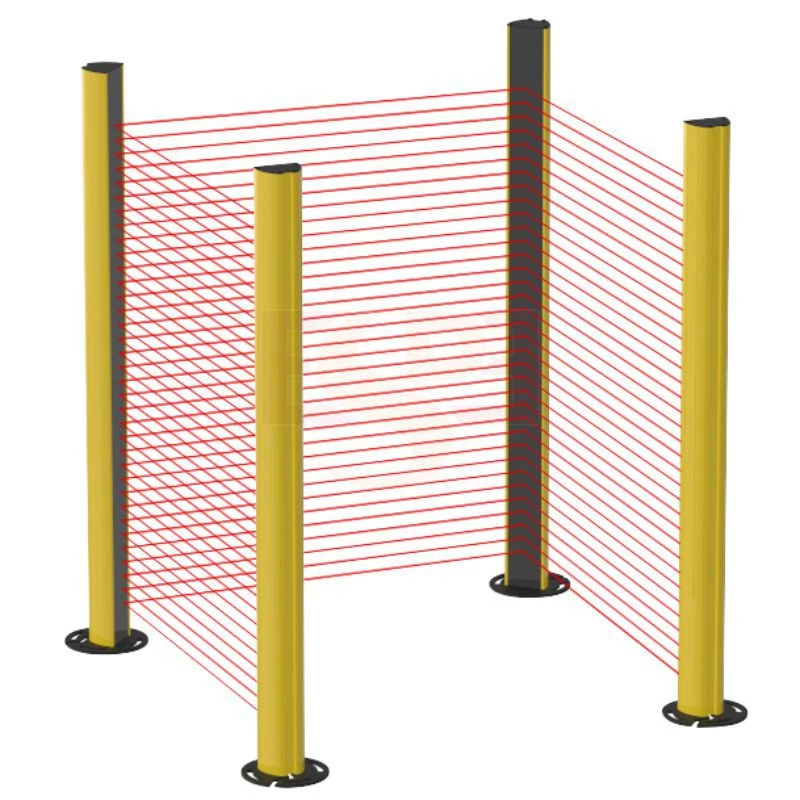

- Side protection: 4 Side protection
- Sensing distance: 0.1-30m
| Supply voltage | DC10V~30V |
| Capacity | <5W |
| Beam space | 10mm, 20mm, 40mm |
| Resolution | 20mm, 30mm, 50mm |
| Beams | 10mm beam space:32, 36, 40……17620mm beam space: 16, 18, 20……8840mm beam space:8, 10, 12……44 |
| Protective height | Protective height =（N-1）*beam gap，N is beam quantity |
| Wave length | 940nm |
| Response time | Response time =(N * 0.1ms) + 0.4ms, N is beam quantity |

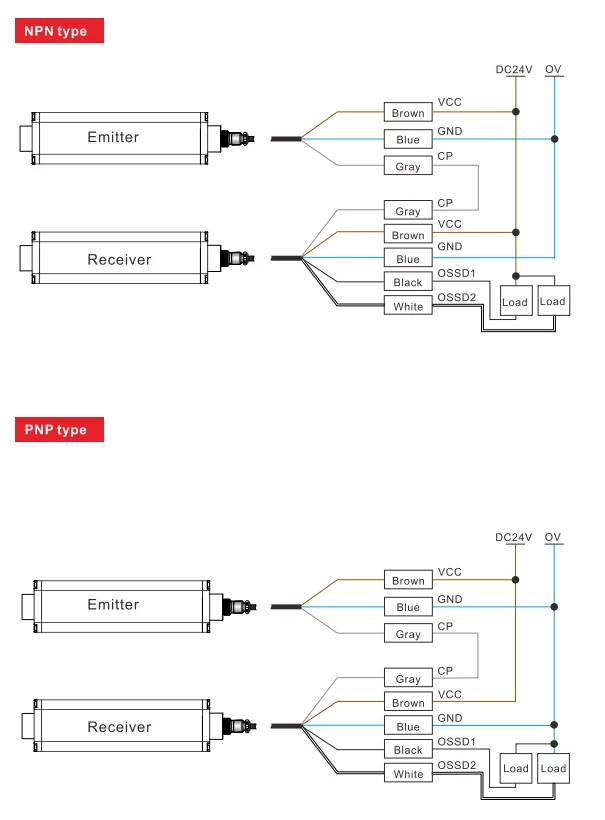

| Type of output（OSSD） | PNP/NPN semiconductors，current <200mA max, residual voltage: 1 V max. leakage current: 1mA max. (Expect voltage influenced by lengthen wire). |
| Protective circuit | Overload voltage protection, power supply reverse polarity protection, over current protection. |
| Sensing distance | 0.1~30m (If reflective light environment, please let us know in advanced) |
| Anti-optical interference | 10000Lux(I >5°) |
| Sensing method | Through-beam type |
| Synchronization | Wire synchronization |
| Enclosure material | Aluminum alloy |
| Enclosure rating | IP65 |
| Housing cross-section | 99.6*75mm |
| Vibration resistance | 10Hz～55Hz，double amplitude each in X、Y、Z directions for 20 times. |
| Ambient operating temperature | -10℃-55℃（with no freezing） |
| Storage temperature | -30℃～70℃（with no freezing） |
| Ambient operating humidity | When temperature is 20℃，humidity max 85% |

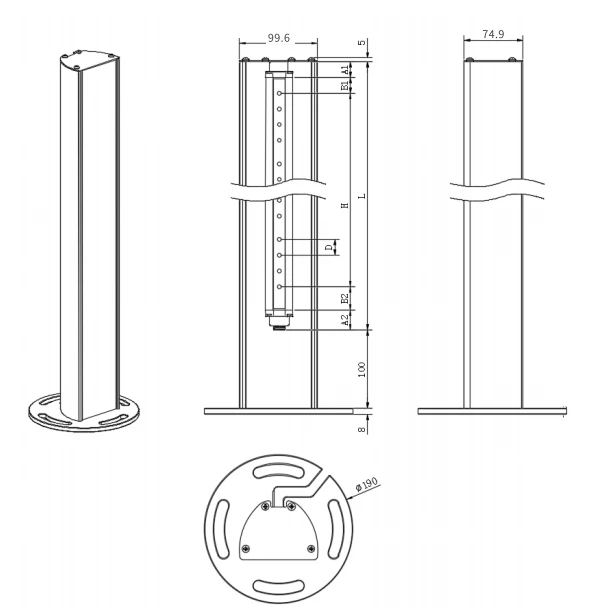

- A1: Upper cover
- A2: Bottom cover + aviation cap
- B1: Upper stop-work range
- B2: Bottom stop-work range
- D: Beam space
- H: Protective height
- L: Total height of light curtain
- L(total height)=A1+A2+B1+B2+H (referning ESN or ESE size)
- H(protective height)=(beams-1)*beam space
- Height of column =L+100
